Stranded Copper Wire 70 mm, 450/750V Voltage Rating, Blue, 1000 M, PVC 85°C Insulated | Saudi Cable Company (SCC)
(599 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

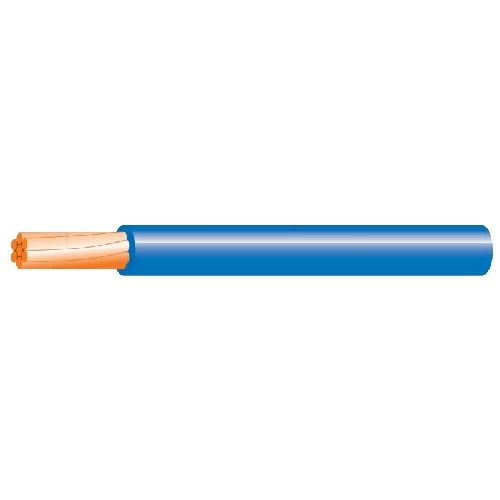

Stranded copper wire (CU/PVC) blue color, size 70 mm, 450/750V, length 1000 m, produced by Saudi Cables Company, It is characterized by ease of forming and bending and high flexibility compared to solid wires.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 85°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of Wires in Conductor: 19
- Nominal Insulation Thickness: 1.4 mm
- Approx Overall Diameter: 13.8 mm
- Weight: 680 kg/km
- Length: 1000 meter/ Drum
- Color: Blue
- specification: SASO:55
- Model Number: CJA1-16*-2
