Stranded Copper Wire, 10 sq mm Size, 450/750V, PVC Insulation, Gray | Nohascom Factory
(807 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

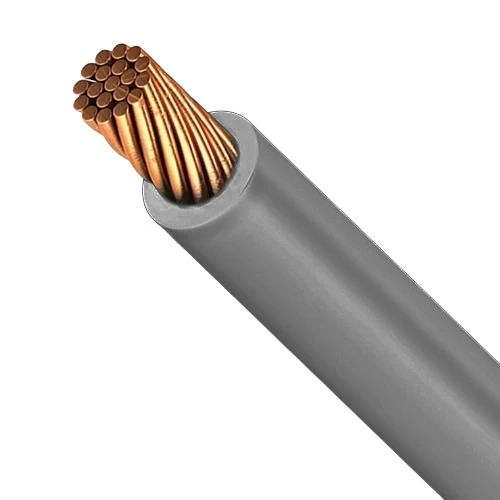

Stranded copper electrical wire (CU/PVC), 10 mm2 cross-sectional area, 450/750 volts, manufactured by Nohascom Factory International Company, insulated with Polyvinyl Chloride (PVC), extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types, color is gray.
Product description
Electrical wire (CU/PVC), manufactured by Nohascom Factory International Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Stranded Copper
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm
- Number of Wires : 7
- Wire Diameter: 1.33 mm
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 6.2 mm
- Weight: 119 kg/km
- Length: Available in standard length (lengths available on customized request)
- Color: Gray
- Standard: IEC 60227
