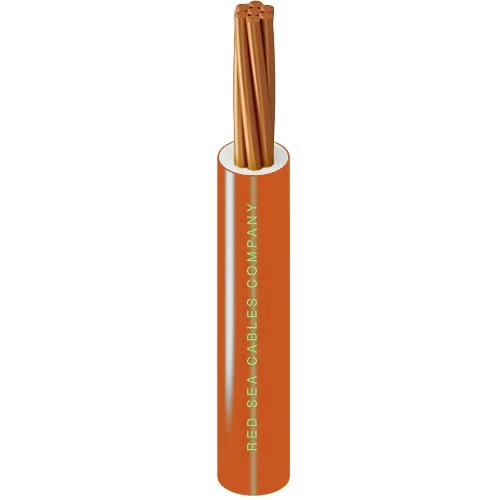

Stranded Copper Single Core Electric Wire, 6mm, 450/750V, PVC 70°C Insulation, Orange Color, 100 Yards | Red Sea Cables
(555 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded copper electrical wire (CU/PVC), 6 mm2 cross section, 450/750V, manufactured by Red Sea Cables Company, Orange in colour, it can withstand temperatures up to 70°C without affecting its performance, making it suitable for use in high temperature environments.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Red Sea Cables Company according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-R
- Conductor: Stranded Copper
- Insulation Material: PVC 70°C
- Voltage: 450/750V
- Conductor Size (Cross-Sectional Area): 6 mm2
- No of Wires: 7
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 5.0 mm
- Maximum DC Resistance at 20°C: 3.08 ohm/km
- Current Carrying Capacity (PVC 70°C): 41 Ampere
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Insulation Color: Orange
- Standards: IEC 60227, SASO 1320, BS 6004
