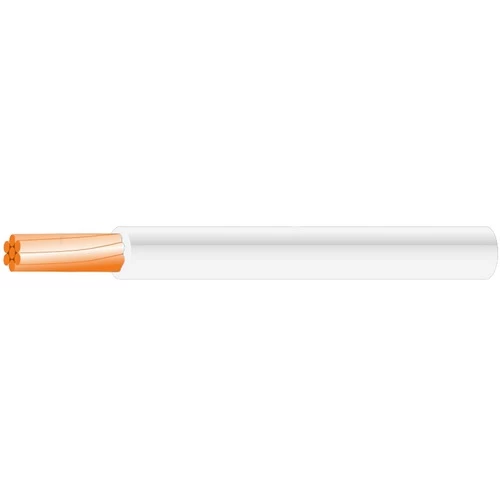

Stranded Copper Single Core Building Wire, 300 mm, 450/750V Voltage Rating, PVC 85°C Insulated, White Color, 500 meter | Saudi Cable Company
(449 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Single-core stranded copper electrical wire (CU/PVC) with a 300 mm2 cross-section, rated 450/750V, white color, produced by Saudi Cable Company (SCC). The (PVC 85°C) insulation ensures excellent resistance to corrosion and heat, making it ideal for efficient power transmission. Available in 500 meters.
Product description
Stranded copper electrical single core wire (CU/PVC), rated 450/750V, manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 85°C
- Voltage: 450/750 volts
- Conductor Size: 300 mm2
- Number of Wires: 61
- Insulation Thickness: 2.4 mm
- Overall Diameter: 27.7 mm
- Weight: 2970 kg/km
- Length: 500 meter/Drum
- Color: White
- Specification: SASO:55
