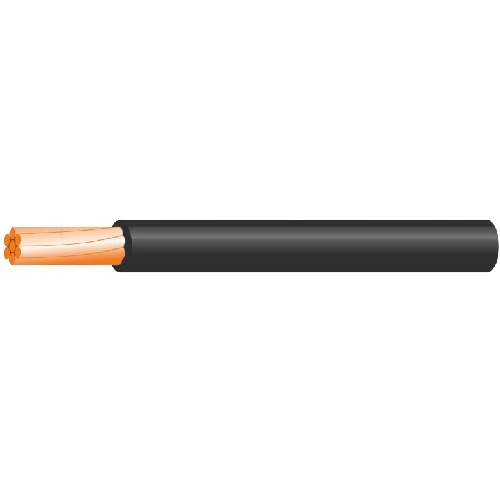

Stranded Copper Electrical Wire 185 mm Size Conductor, 450/750V, PVC 85°C Insulation, Black, 1000 Meter Saudi Cable Company
(723 Product Views)
Stranded Copper Electrical Wire 185 mm Size Conductor, 450/750V, PVC 85°C Insulation, Black, 1000 Meter, Saudi Cable Company. Provides protection from shock, friction and corrosion, in addition to its high resistance to water and humidity.
Product description
Stranded copper wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:60228
- Insulation Material: PVC BS:6746 Rated 85°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 185 mm
- Number of Wires in Conductor: 37
- Nominal Insulation Thickness: 2.0 mm
- Approx Overall Diameter: 22.0 mm
- Weight: 1800 kg/km
- Length: 1000 meter/Drum
- Color: Black
- Product Code: CJA1-22*
- specification: SASO:55
