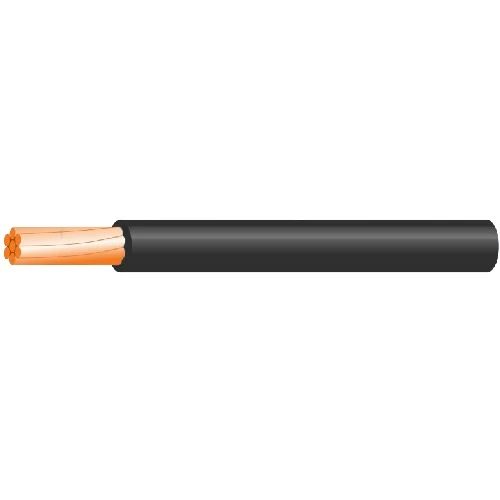

Stranded Copper Electrical Wire 16 mm Size, 450/750V, PVC 85°C Insulated, Black, Length 100 m Saudi Cable Factory(SCC)
(644 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded Copper Electrical Wire 16 mm Size, 450/750V, PVC 85°C Insulated, Black, Length 100 m, Saudi Cable Factory(SCC). It is used in lighting fixtures, distribution switches, as well as for internal connections of appliances and equipment.
Product description
Stranded copper wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:60228
- Insulation Material: PVC BS:6746 Rated 85°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 16 mm
- Number of Wires in Conductor: 7
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 7.3 mm
- Weight: 171 kg/km
- Length: 100 meter/Coil
- Color: Black
- Product Code: CJA1-09*
- specification: SASO:55
