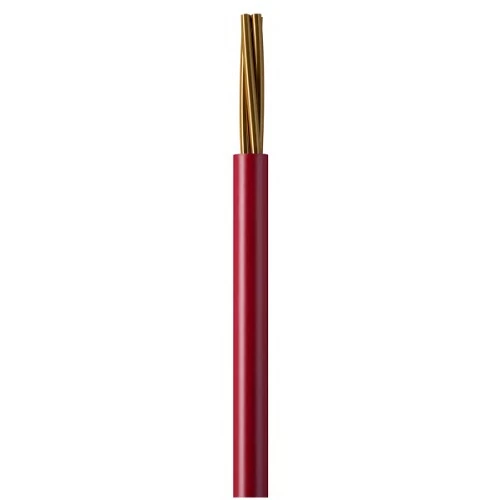

Stranded Copper Electric Wire, 25mm Size, 450/750V, PVC Insulation, Red Color | Jeddah Cables
(887 Product Views)
Stranded copper electric wire (CU/PVC), 25mm2, 450/750V, PVC insulated, providing high protection against damage caused by harsh environmental conditions. This wire is highly durable and capable of handling large electrical loads, making it ideal for heavy industrial applications. Red color. Produced by Jeddah Cables.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor Material: Copper
- Conductor Shape: Soft Annealed Stranded Wires
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 25 mm²
- Nominal Insulation Thickness: 1.2 mm
- Approx Overall Diameter: 8.7 mm
- Weight: 270 kg/km
- Max DC Conductor Resistance at 20°C: 0.727 ohm/km
- Current Rating Laid in Conduits: 103 Ampere
- Current Rating Laid in Free Air: 152 Ampere
- Color: Red
- Standard: IEC 60227
