Stranded Copper Electric Wire, 150mm, 450/750 volts, PVC 70°C Insulation, White Color, Length 1000 meter | Saudi Cable Company
(476 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

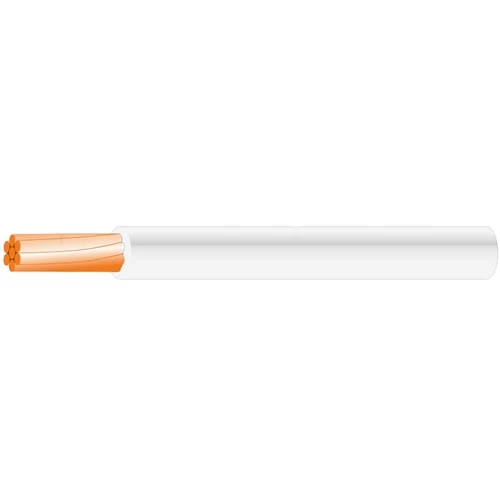

Stranded copper electrical wire (CU/PVC), 150 mm2 size, 450/750V, length is 1000 meter/Box, manufactured by Saudi Cable Company (SCC), providing protection against abrasion, also prevents moisture, insulated with polyvinyl chloride (PVC 70°C).
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 150 mm
- Number of Wires in Conductor: 37
- Nominal Insulation Thickness: 1.8 mm
- Approx Overall Diameter: 19.7 mm
- Weight: 1400 kg/km
- Length: 1000 meter/Box
- Color: White
- Product Code: CDA1-21-12
- specification: SASO:55
