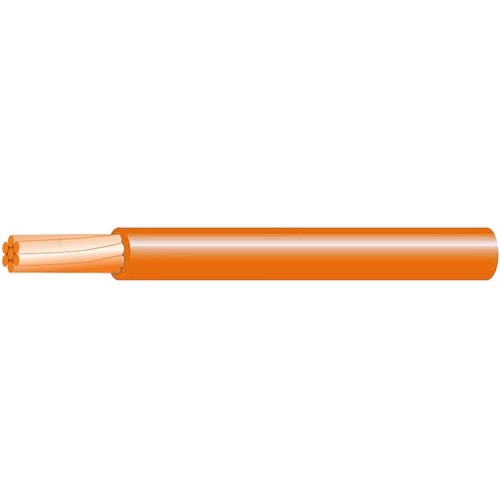

Stranded Copper Electric Wire, 120mm, 450/750V, PVC 70°C Insulated, Orange Color, 1000 M | Saudi Cable Company
(594 Product Views)
Stranded copper electrical wire (CU/PVC), 120 mm2 size, 450/750V, Insulated with polyvinyl chloride (PVC 70°C), It is manufactured using the finest materials and latest technology, ensuring its high quality and reliable long-term performance, manufactured by Saudi Cable Company (SCC), orange color.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 120 mm
- Number of Wires in Conductor: 37
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 17.6 mm
- Weight: 1164 kg/km
- Length: 1000 meter/Drum
- Color: Orange
- Specification: SASO:55
- Catalogue Number: CDA1-19*
