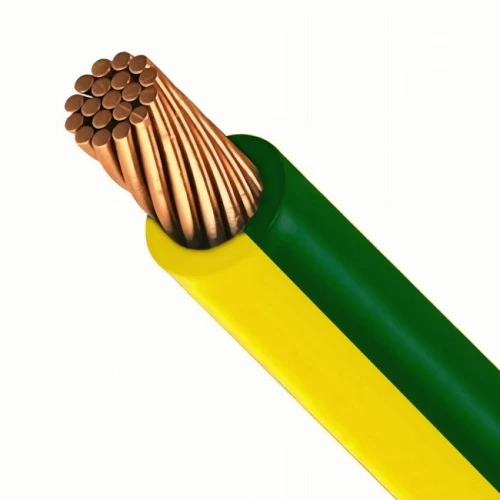

Stranded Copper Earthing Electric Wire, 4mm2 Size, 450/750 Rated Voltage, PVC Insulation, Green/Yellow | Nohascom Factory

Electrical wire for earthing (CU/PVC), manufactured by Nohascom Factory International Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. The grounding wire is used to provide a safe path for electric current to flow to the ground in the event of a short circuit, thus protecting people and equipment from electric shocks and fires. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor: Stranded Copper
• Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 4 mm
• Number of Wires : 7
• Wire Diameter: 0.84 mm
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Nominal Insulation Thickness: 0.8 mm
• Approx Overall Diameter: 4.2 mm
• Weight: 50 kg/km
• Length: 100 yards (91.44 meters) on coil, (Custom lengths are available upon request)
• Color: Green/Yellow
• Standard: IEC 60227
