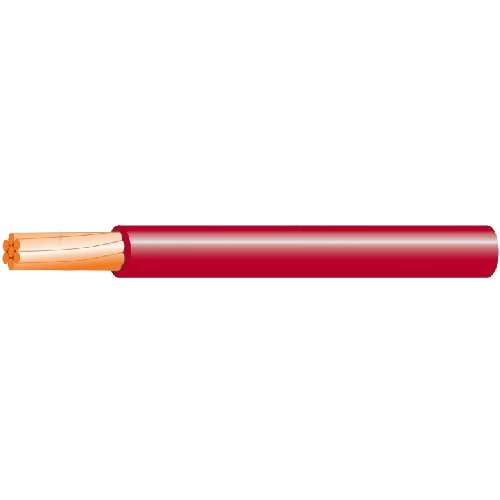

Stranded Copper Building Wire, 16mm, 450/750V, PVC 70°C Insulation, Red Color, 50 meter | Saudi Cable Company (SCC)
(608 Product Views)
Stranded copper electrical wire (CU/PVC), 16 mm2 size, 450/750V, Insulated with polyvinyl chloride (PVC 70°C), It is manufactured using the latest technology and the finest materials, ensuring its high quality, produced by Saudi Cable Company (SCC), red color.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor Material: Stranded Copper Conforming to IEC:228
- Insulation Material: PVC Type 5 to BS:6746 Rated 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 16 mm
- Number of Wires in Conductor: 7
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 7.3 mm
- Weight: 171 kg/km
- Length: 50 meter/Coil
- Color: Red
- Specification: SASO:55
- Catalogue Number: CDA1-09*
