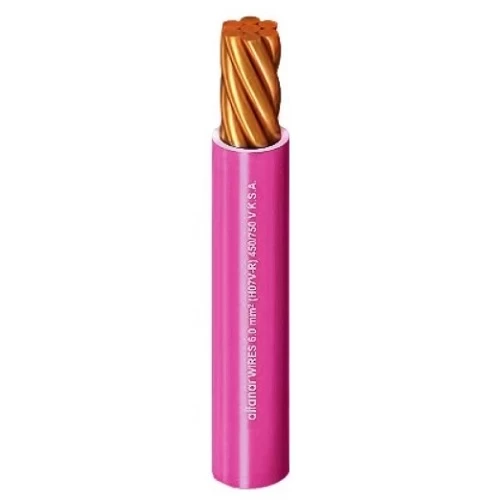

PVC Insulated Stranded Copper Electrical Wire, 450/750V, 6mm Size, 300ft Length | Alfanar
(687 Product Views)
Stranded copper electrical wire (CU/PVC), 6 mm2 cross-sectional area, 450/750 volts, According to the latest British and IEC standards. High quality PVC insulated, manufactured by Alfanar Company.
Product description
Stranded copper electrical wire (CU/PVC), Produced by Al Fanar Company in accordance with the latest BS or IEC standards. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires : 7
- Conductor Diameter: 1.04 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 4.7 mm
- Weight: 72 kg/km
- Length: 100 yards on Coil (Other lengths available on request)
- Color: Pink
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
