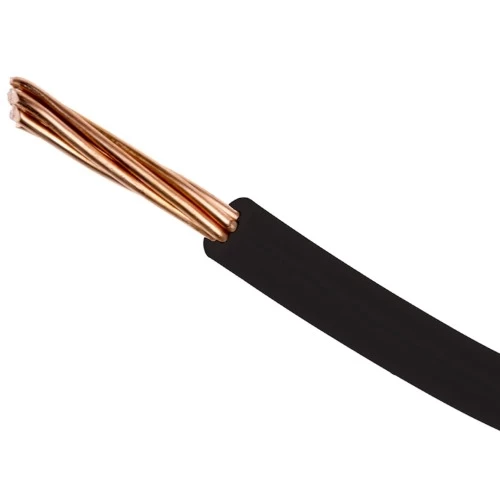

CU/LS0H-XL Stranded Copper Wire, 6 mm2, 450/750V, Black Color, 100 Yard | BAHRA

Stranded copper electrical wire (CU/LS0H-XL), conductor, 450/750 volts, produced by BAHRA Cables Company according to BS 7211 standard, Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. The insulation also is composed of a cross-linked polymer(XL), which enhances its resistance to heat, moisture, and ultraviolet radiation. These wires are commonly used in applications that require high levels of safety and reliability, such as industrial, construction, and transportation sectors, Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Wire Type: H07 Z-R
• Conductor: Annwaled Stranded Copper Wires
• Insulation Material: LS0H-XL (Rated 90°C)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 6 mm2
• No. of Wires x Nominal Wire Diameter: 7 x 1.04 mm
• Max DC Conductor Resistance at 20°C: 3.08 ohm/km
• Nominal Insulation Thickness: 0.8 mm
• Nominal Outer Diameter: 4.67 mm
• Current Caryying Capacity: 51 Amp
• Standard Length: 100 Yards (91.4 meter) / Coils
• Insulation Color: Black
• Standard: BS 7211
