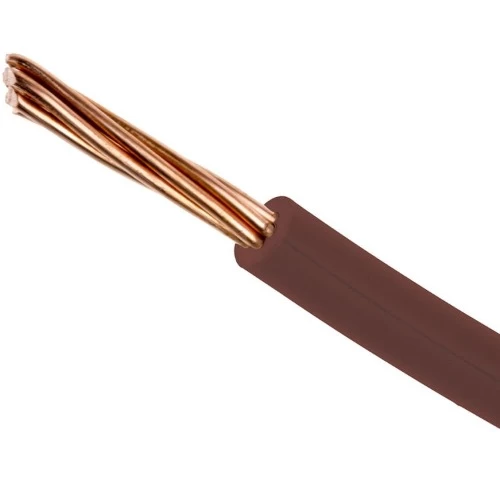

CU/LS0H-XL Stranded Copper Wire, 1.5mm2, 450/750V, brown Color,100 M/Drum | BAHRA

CU/LS0H-XL Stranded Copper Wire, 1.5mm2, 450/750V, brown Color,100 M/Drum | BAHRA

(325 Product Views)

YouMats

Stranded copper electrical wire (CU/LS0H-XL), 1.5mm2 size conductor, 450/750 volts, produced by BAHRA Cables Company These wires are commonly used in applications that require high levels of safety and reliability, such as industrial, construction, and transportation sectors.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded copper electrical wire (CU/LS0H-XL), conductor, 450/750 volts, produced by BAHRA Cables Company according to BS 7211 standard, Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. The insulation also is composed of a cross-linked polymer(XL), which enhances its resistance to heat, moisture, and ultraviolet radiation. These wires are commonly used in applications that require high levels of safety and reliability, such as industrial, construction, and transportation sectors, Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Wire Type: H07 Z-R
  • Conductor: Annealed Stranded Copper Wires
  • Insulation Material: LS0H-XL (Rated 90°C)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 1.5 mm2
  • No. of Wires x Nominal Wire Diameter: 7 x 0.844 mm
  • Max DC Conductor Resistance at 20°C: 4.61 ohm/km
  • Nominal Insulation Thickness: 0.8 mm
  • Nominal Outer Diameter: 4.23 mm
  • Current Caryying Capacity: 40 Amp
  • Standard Length:100 M/Drum
  • Insulation Color: brown
  • Standard: BS 7211
