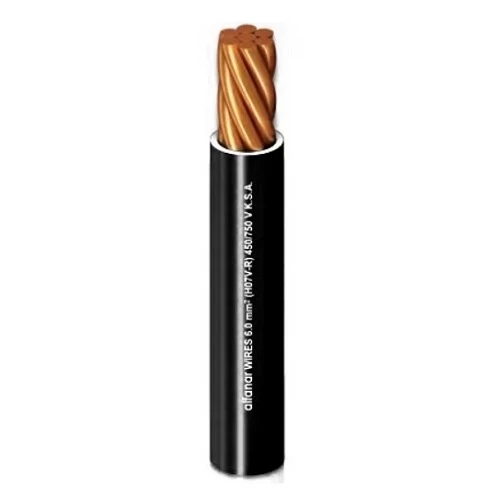

Copper Stranded Wire Coil 6mm2 450/750V, PVC Insulation | Alfanar
(1138 Product Views)
Copper Stranded Wire Coil 6mm2 450/750V, PVC Insulation. The insulation provides excellent protection from moisture and corrosion, preventing electric current leakage. Suitable for internal wiring and power circuits. Black color. Produced by Alfanar.
Product description
stranded copper electrical wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 6 mm²
- Number of Wires: 7
- Conductor Diameter: 1.04 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 4.7 mm
- Weight: 72 kg/km
- Color: Black
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
