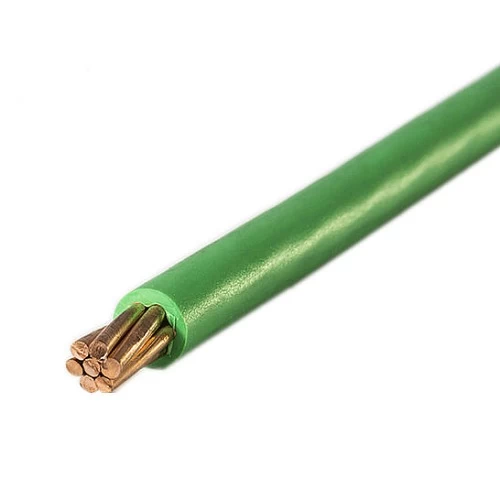

Copper Stranded Electric Wire 2.5mm 450/750 Volts, PVC Insulated, Green Color | Riyadh Cables
(788 Product Views)
2.5mm 450/750V stranded copper electrical wire, PVC insulated, color is green, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture, produced by Riyadh Cables Company.
Product description
Electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the wire and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment rated voltage up to 1000 V AC and up to 750 V DC to earth. Available in various shapes, colors and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Copper
- Conductor Shape: Stranded
- Wire Type: (H07V-R)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 2.5 mm
- Number of Wires in Conductor : 7
- Conductor Diameter: 2.01 mm
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 4 mm
- Weight: 35 kg/km
- Maximum DC Resistance at 20°C: 7.41 ohm/km
- Length: 100m coil (±5%)
- Color: Green
- Standards: SSA 1320, IEC 60227 & BS 6004
