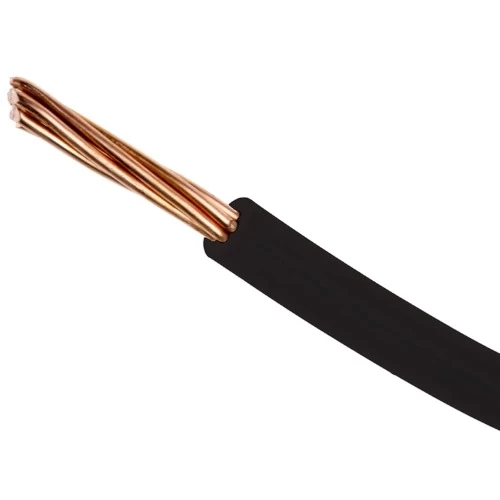

BAHRA 300mm Wire 450/750V, Stranded Copper, PVC 70°C Insulated, Black, 1000 Meters

Stranded copper electrical wire (CU/PVC), manufactured by Bahra Cables Company according to British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride) 70°C
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 300 mm²
• Number of Wires x Nominal Wire Diameter: 61 x 2.54 mm
• Maximum DC Resistance at 20°C: 0.0601 ohm/km
• Nominal Insulation Thickness: 2.4 mm
• Approx Overall Diameter: 27.59 mm
• Current Carrying Capacity (PVC 70°C): 458 Ampere
• Standard Length: 1000 Meter/Drum
• Insulation Color: Black
• Standards: 60227 IEC 01, BS EN 50525-2-31 and SASO 1320
