70mm Stranded Copper NYA Wire, 1000V, PVC 90°C Insulation, orange, 100 Yards | RESCAB
(679 Product Views)

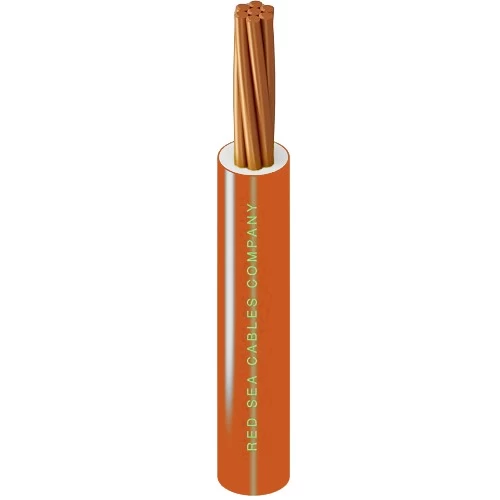

Stranded copper electric wire (CU/PVC), manufactured by Red Sea Cables Company according to International and British standards to ensure quality and safety, Insulated with polyvin 70 sq mm2 cross section, 1000voltyl chloride (PVC 90°C).
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Red Sea Cables Company according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-R
- Conductor: Stranded Copper
- Insulation Material: PVC 90°C
- Voltage: up to 1000Vac or upto 750Vdc
- Conductor Size (Cross-Sectional Area): 70 mm2
- No of Wires: 19
- Nominal Insulation Thickness: 1.4 mm
- Approx Overall Diameter: 13.1 mm
- Maximum DC Resistance at 20°C: 0.268 ohm/km
- Current Carrying Capacity (PVC 90°C): 210 Ampere
- Standard Length: 300 feet (91.4 meter) / Plastic Reels
- Insulation Color: orange
- Standards: IEC 60227, SASO 1320, BS 6004
