6mm2 Single Electrical Wire 450/750V, Stranded Copper Conductor PVC Insulated, Yellow/Green Color | Alfanar
(1811 Product Views)

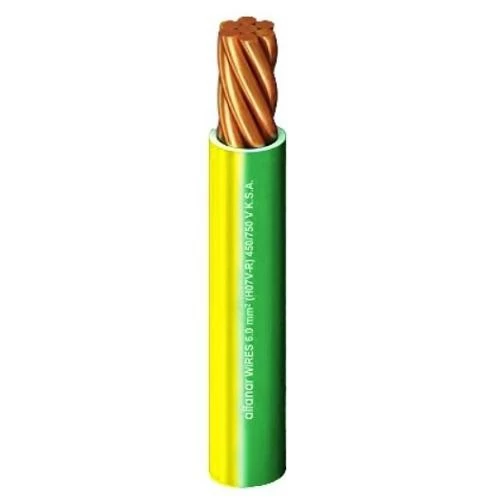

6 mm2 Single Electrical Wire 450/750V, stranded copper conductor PVC insulated, yellow/green color, number of wires 7, insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability, intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment, manufactured by Alfanar.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Alfanar, Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires : 7
- Conductor Diameter: 1.04 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 4.7 mm
- Weight: 72 kg/km
- Length: 300 feet on Coil (100 yards) Other lengths available on request
- Color: Yellow/Green
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
