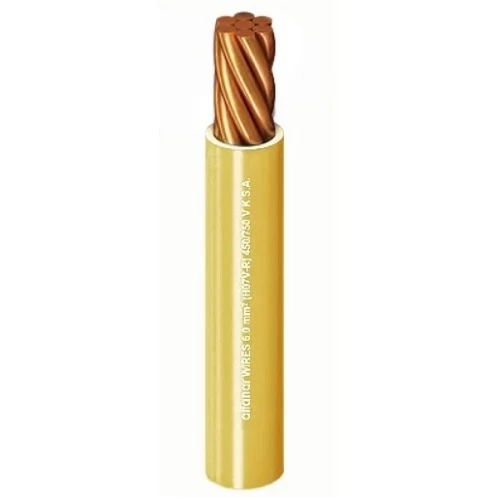

630sq mm Single Wire 450/750V, Stranded Copper Conductor, Heat Resistant PVC Insulated, Yellow Color | Alfanar

630sq mm Single Wire 450/750V, Stranded Copper Conductor, Heat Resistant PVC Insulated, Yellow Color | Alfanar

(438 Product Views)

YouMats

Stranded copper electrical heat resistant wire (CU/PVC), 630 mm2 cross-sectional area, 450/750 volts, It has many uses such as machines, control panels, and devices with a high operating temperature, manufactured by Alfanar Company.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded copper electrical heat resistant wire (CU/PVC), Produced by Al Fanar Company in accordance with the latest BS or IEC standards. Insulated with polyvinyl chloride (PVC 90 ºC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines and instruments with higher operating temperature, and in lighting networks, power systems. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor Type: Copper
  • Conductor Shape: Stranded
  • Insulation Material: Polyvinyl Chloride (PVC) 90 ºC
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 630 mm2
  • Number of Wires : 61
  • Conductor Diameter: 3.81 mm
  • Max DC Conductor Resistance at 20°C: 0.0283 ohm/km
  • Nominal Insulation Thickness: 2.8 mm
  • Approx Overall Diameter: 35.7 mm
  • Weight: 6071 kg/km
  • Length: 300 feet on Coil (100 yards). Other lengths available on request
  • Color: Yellow
  • Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
