630mm Stranded Copper Wire, Heat Resistant PVC Insulated, 450/750V, Coil Length 300ft | Alfanar
(915 Product Views)

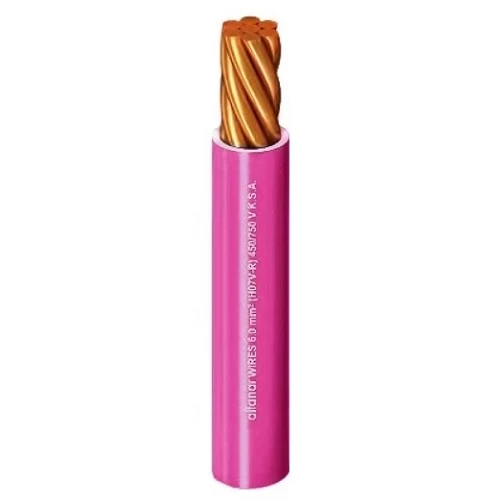

630mm, 450/750V, stranded copper wire with heat-resistant PVC insulation, offers superior protection against electrical leakage and corrosion, ensuring reliable performance in large electrical applications. Pink color. Produced by Alfanar.
Product description
Stranded copper electrical heat resistant wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC 90 ºC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines, and instruments with higher operating temperatures, as well as in lighting networks and power systems. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: Polyvinyl Chloride (PVC) 90 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 630 mm²
- Number of Wires: 61
- Conductor Diameter: 3.81 mm
- Max DC Conductor Resistance at 20°C: 0.0283 ohm/km
- Nominal Insulation Thickness: 2.8 mm
- Approx Overall Diameter: 35.7 mm
- Weight: 6098 kg/km
- Color: White
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
