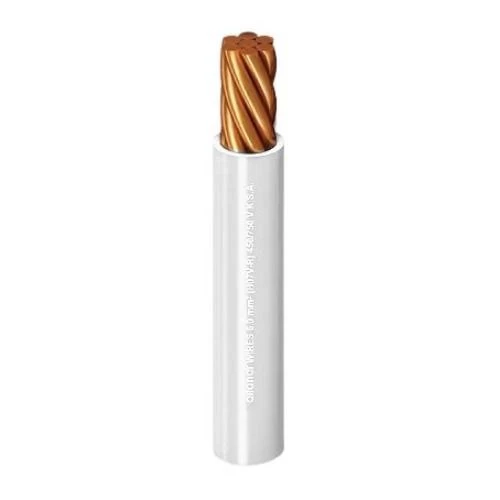

630mm Copper Stranded Electric Wire 450/750Rated Voltage, Heat Resistant PVC Insulated 2.8mm Thick | Alfanar
(894 Product Views)
630 mm2 Copper Stranded Electric Wire 450/750Rated Voltage, heat resistant PVC insulated 2.8 mm thick, phase core color white, number of wires 61, insulated with polyvinyl chloride (PVC 90 ºC), where the insulation layer provides highly resistant to water and moisture, available in various shapes and sizes in highest quality and best prices to suit different applications and needs, manufactured by Alfanar.
Product description
Stranded copper electrical heat resistant wire (CU/PVC), manufactured by Alfanar. Insulated with polyvinyl chloride (PVC 90 ºC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines and instruments with higher operating temperature, and in lighting networks, power systems. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: (PVC 90 ºC) Heat Resistant
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 630 mm2
- Number of Wires: 61
- Conductor Diameter: 3.81 mm
- Max DC Conductor Resistance at 20°C: 0.0283 ohm/km
- Nominal Insulation Thickness: 2.8 mm
- Approx Overall Diameter: 35.7 mm
- Weight: 6071 kg/km
- Length: 300 feet on Coil (100 yards). Other lengths available on request
- Color: White
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
