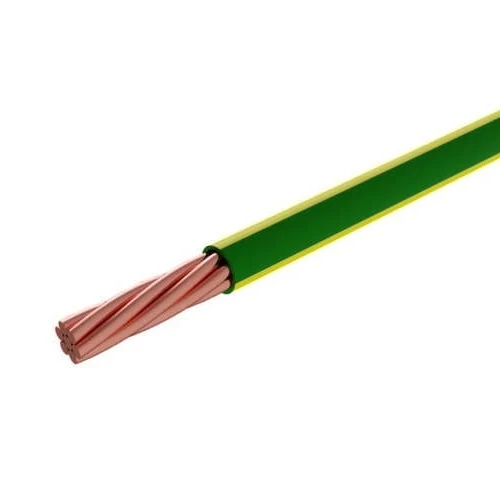

300 mm2 Stranded Copper Earth Wire, 450/750 Voltage Rating, PVC Insulated, Yellow/Green | Riyadh Cables
(1165 Product Views)
300 mm2 stranded copper earth wire, 450/750 voltage rating, PVC insulated, providing strong protection against electrical current leakage and harmful environmental factors, making it suitable for use in heavy industrial applications and power networks. Yellow/Green color. Produced by Riyadh Cables.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment. Available in various shapes, colors, and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor: Copper
- Conductor Shape: Stranded
- Wire Type: (H07V-R)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 300 mm²
- Number of Wires in Conductor: 61
- Conductor Diameter: 22.68 mm
- Nominal Insulation Thickness: 2.4 mm
- Approx Overall Diameter: 29.6 mm
- Weight: 3180 kg/km
- Maximum DC Resistance at 20°C: 0.0601 ohm/km
- Length: 1000m Drum (±5%)
- Color: Yellow/Green
- Standards: SSA 1320, IEC 60227 & BS 6004
