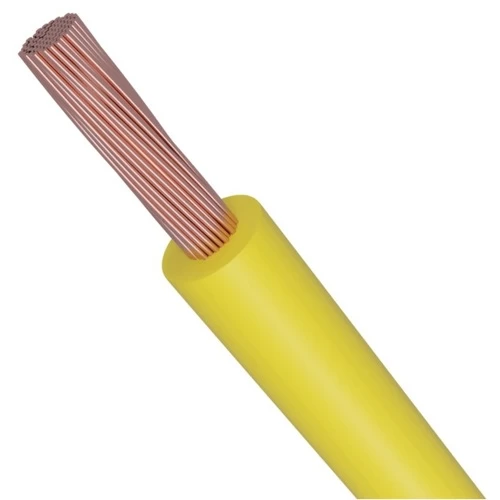

3/0 AWG 1C Stranded Copper Electric Wire, 1000V, PVC Insulation (+105°C) Yellow, 500 feet Length | Asharqiyah Cables

3/0 AWG 1C Stranded Copper Electric Wire, 1000V, PVC Insulation (+105°C) Yellow, 500 feet Length | Asharqiyah Cables

(774 Product Views)

3/0 AWG 1C stranded copper electric wire, 1000V, 500 feet Length. PVC insulation provides heat and moisture resistance, ideal for large industrial applications. Yellow color by Asharqiyah Cables.

in stock
 Call Now

Product description

Stranded copper electrical American wire (AWM), rated for 1000 Vac, manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.

  • Wire Type: American Wires AWM (Appliance Wiring Material)
  • Conductor: Stranded Copper
  • Insulation Material: PVC (+105°C) Heat Resistance
  • Voltage: Rated for 1000 Vac
  • Conductor Size (Cross-sectional area): 3/0 AWG
  • No. of Wires: 19
  • Classification Standards: Class B of ASTM
  • Nominal Insulation Thickness: 2.03 mm
  • Approx Overall Diameter: 16.50 mm
  • Approx Weight: 900 kg/km
  • Insulation Color: Yellow
  • Standard Length: 500 feet
  • Standards: UL STYLE 11563, UL 758, UL E505934
