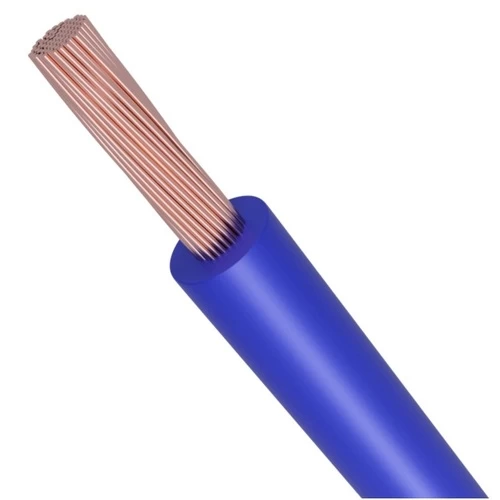

3 AWG 1C Stranded Copper Electric Wire, 1000Volts, PVC Insulation (+105°C) Blue, Length 500 feet | Asharqiyah Cables
(487 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
3 AWG stranded copper American electric wire, 1000V, Length 500 feet. Insulated with PVC, offering excellent resistance to heat, oils, and chemicals. Ideal for heavy-duty industrial applications such as power systems and electrical machinery. Blue color by Asharqiyah Cables.
Product description
Stranded copper electrical American wire (AWM), rated for 1000 Vac, manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 3 AWG
- No. of Wires: 19
- Classification Standards: Class C of ASTM
- Nominal Insulation Thickness: 1.52 mm
- Approx Overall Diameter: 10.20 mm
- Approx Weight: 340 kg/km
- Insulation Color: Blue
- Standard Length: 500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
