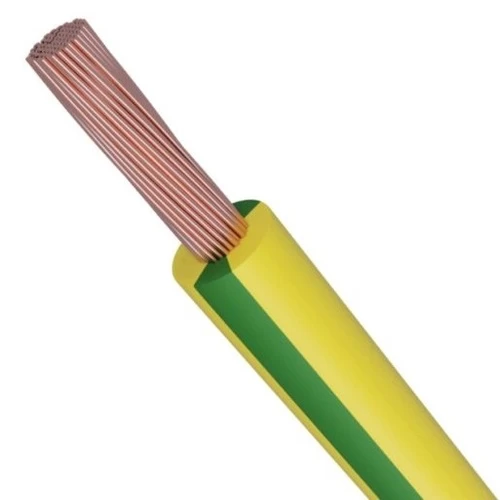

Stranded Copper Electrical Wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced in accordance with international quality and safety standards, PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation provides excellent protection around the conductor, preventing electric current leakage and offering protection against shocks, abrasion, and corrosion. It also shields the wire from harmful UV rays and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable is widely used in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications, offering superior quality and competitive pricing.
- Wire Type: H07V-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: PVC (Polyvinyl Chloride) 70°C
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 2.5 mm²
- Nominal Insulation Thickness: 0.80 mm
- Approx Overall Diameter: 3.60 mm
- Weight: 33 kg/km
- Maximum DC Resistance at 20°C: ≤7.41 ohm/km
- Standard Length: 100 yards coil
- Insulation Color: Yellow/Green
- Standards: IEC 60227-3, BS EN 50525-2-31
