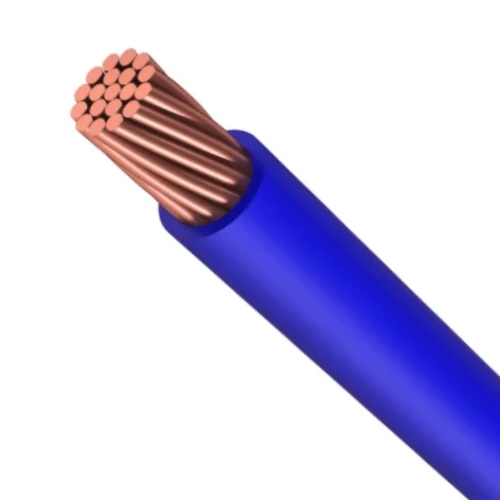

12 AWG Stranded Copper Electrical Wire(MTW), 600V, Blue Color, 500ft Length | Asharqiyah Cables
(774 Product Views)
Stranded Copper Wire (MTW), 12 AWG, 600V, Available in various colors and sizes with highest quality and competitive prices to suit diverse applications and needs, From Asharqiyah Cables Company, blue color
Product description
Single core stranded copper electrical wire (MTW), manufactured by Asharqiyah Cables, according to (UL 1063) standard. Insulated with polyvinyl chloride (PVC 90°C), providing high resistance to heat, moisture, oils, and chemicals. Suitable for dry locations at temperatures not exceeding 90°C, or 60°C in wet locations. Designed for internal wiring in electrical equipment, control panels, switchboards, and other electrical equipment applications. Available in various colors and sizes with highest quality and competitive prices to suit diverse applications and needs.
- Wire Type: MTW (Machine‐Tool Wires)
- Rated Temperature: 90℃ DRY, 60°C WET
- Conductor: Stranded Copper
- Insulation Material: PVC (90°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 12 AWG
- No. of Wires: 65
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 4.05 mm
- Approx Weight: 48 kg/km
- Insulation Color: Blue
- Standard Length: 500 feet/Spools
- Standards: UL 1063, (UL) E498220
