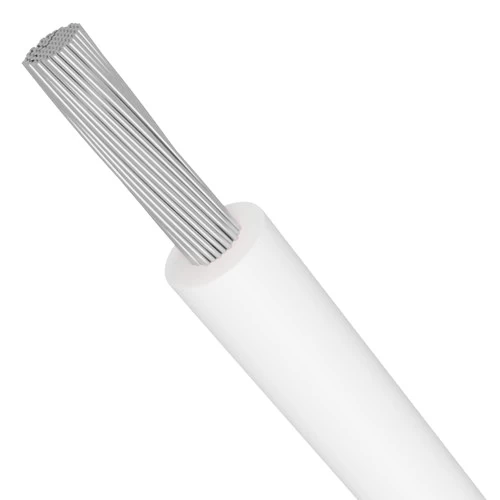

16 AWG Stranded Tinned Copper Electric Wire, PVC Insulated (105°C), White, 600 Rated Voltage, 2500 Feet Length | Alsharqiyah Cables
(461 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded copper AWM electric wire 16 AWG, 600 voltage rating, PVC insulated, produced by Alsharqiyah Cables Company, used in internal wiring in air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications, insulation color is white.
Product description
Electrical american wire (AWM), manufactured by Alsharqiyah Cables Company. complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Tinned Copper (Class C of ASTM)
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 16 AWG
- No. of Wires: 19
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.05 mm
- Approx Weight: 25 kg/km
- Insulation Color: White
- Standard Length: 2500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934
