14 AWG Stranded Copper American Electric Wire, PVC Insulation (105°C), Orange, 600V, Length 2500ft | Asharqiyah Cables

14 AWG Stranded Copper American Electric Wire, PVC Insulation (105°C), Orange, 600V, Length 2500ft | Asharqiyah Cables

(389 Product Views)

YouMats

14 AWG Stranded Copper Electric Wire, 600 Volts, Length 2500 feet, insulated with durable PVC providing protection from environmental factors such as heat and moisture, ideal for both household and industrial electrical equipment. Orange color by Asharqiyah Cables.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

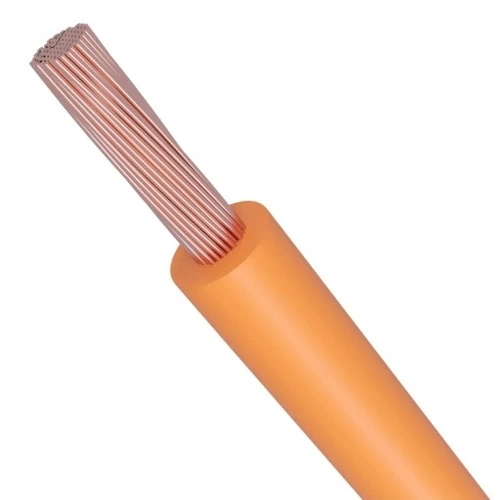

Stranded copper electrical American wire (AWM), manufactured by Asharqiyah Cables, complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.

  • Wire Type: American Wires AWM (Appliance Wiring Material)
  • Conductor: Stranded Copper (Class C of ASTM)
  • Insulation Material: (PVC 105°C) Heat Resistance
  • Voltage: 600 volts
  • Conductor Size (Cross-sectional area): 14 AWG
  • No. of Wires: 19
  • Nominal Insulation Thickness: 0.76 mm
  • Approx Overall Diameter: 3.50 mm
  • Approx Weight: 34 kg/km
  • Insulation Color: Orange
  • Standard Length: 2500 feet on a plastic spool or wooden drum
  • Standards: UL-1015, UL 758, UL E505934
