120mm NYA Wire 450/750 Voltage Rating, Stranded Copper PVC 90°C Insulated, Red | Asharqiyah Cables
(735 Product Views)
Stranded copper electrical wire (CU/PVC), 120 mm2 cross section, 450/750 volts, red color, PVC 90°C insulation, manufactured by Asharqiyah Cables Company, available in various colors and sizes with the highest quality and best prices.
Product description

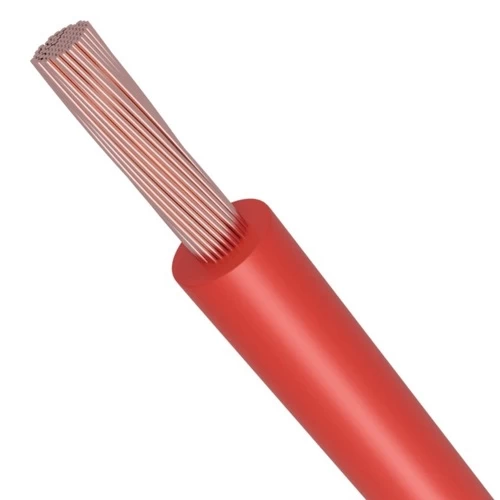

Stranded Copper Electrical Wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced in accordance with international quality and safety standards, PVC insulated (90°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: Heat-resistant (PVC 90°C)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 120 mm2
- Nominal Insulation Thickness: 1.60 mm
- Approx Overall Diameter: 16.50 mm
- Weight: 1150 kg/km
- Maximum DC Resistance at 20°C: 0.153 ohm/km
- Standard Length: 1000m drum
- Insulation Color: Red
- Standards: IEC 60227-3, BS EN 50525-2-31
