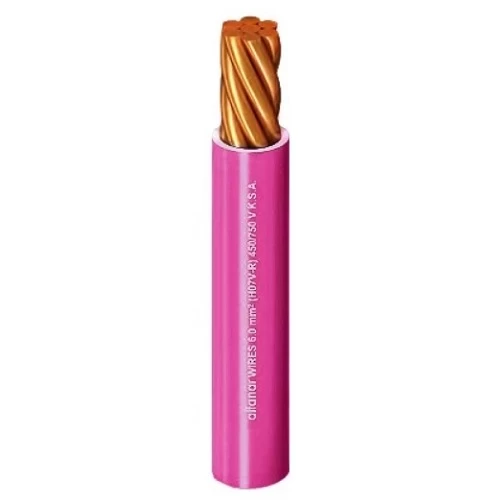

120 sq mm Stranded Copper Wire, Heat Resistant PVC Insulated, 450/750V, 100 yards Length | Alfanar
(914 Product Views)
120 sq mm stranded copper wire, heat resistant PVC insulated. Provides effective protection against electrical leakage, shocks, and abrasion. Ideal for industrial environments with harsh conditions. Pink color. Produced by Alfanar.
Product description
Stranded copper electrical heat resistant wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC 90 ºC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines, and instruments with higher operating temperatures, as well as in lighting networks and power systems. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Stranded
- Insulation Material: (PVC 90 ºC) Heat Resistant
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 120 mm²
- Number of Wires: 19
- Conductor Diameter: 3.05 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Nominal Insulation Thickness: 1.6 mm
- Approx Overall Diameter: 15.8 mm
- Weight: 1145 kg/km
- Length: 300 feet on Coil (100 yards). Other lengths available on request
- Color: Pink
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
