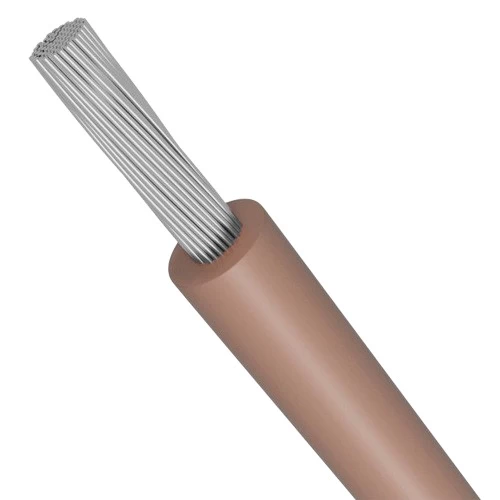

12 AWG Stranded Tinned Copper Electric Wire, 600 Volt, PVC Insulation (+105°C) Brown | Asharqiyah Cables
(731 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded tinned copper electrical american wire (AWM), 12 AWG conductor size, Length 2500 feet, rated for 600 Vac or 750 Vdc, manufactured by Asharqiyah Cables, suitable for indoor and outdoor uses, Available in a variety of sizes and colors.
Product description
Stranded Tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Stranded Tinned Copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 12 AWG
- No. of Wires : 19
- Classification Standards : Class C of ASTM
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 4.70 mm
- Approx Weight : 52 kg/km
- Insulation Color : Brown
- Standard Length : 2500 feet
- Standards : UL STYLE 1028, UL 758, UL E505934
Additional Information▼
What is 12 AWG in mm? (Conversion to mm²)
If you are looking for a direct answer to the question What is 12 AWG in mm, it often refers to cross-sectional area in mm² (not the outer diameter after insulation). The size 12 AWG is approximately 3.31 mm² for the cross-sectional area of copper.
In this product, the size is 12 AWG with a stranded tinned copper conductor and 19 strands with PVC +105°C insulation, so the visible dimensions such as thickness and outer diameter may vary from another wire of the same AWG depending on the type of insulation.
Important Information Before Purchase
- AWG is an American standard that indicates the size of the conductor, while mm² indicates the cross-sectional area of the copper.
- Do not confuse cross-sectional area with overall diameter of the wire: the overall diameter of this wire is about 4.70 mm as it includes the conductor + insulation.
- The size 12 AWG ≈ 3.31 mm² helps you match the size with work plans and contractors who use mm².
Quick Summary of 12 AWG Wire Specifications (Eastern Cables Product)
| Type | American AWM Wire (Device Connection Materials) |
|---|---|
| Size | 12 AWG (≈ 3.31 mm²) |
| Conductor Material | Tinned Copper (Stranded) |
| Insulation | PVC +105°C |
| Voltage | 600 Volts AC (up to 750 Volts DC according to product data) |
| Color | Brown |
| Standard Length | 2500 Feet |
