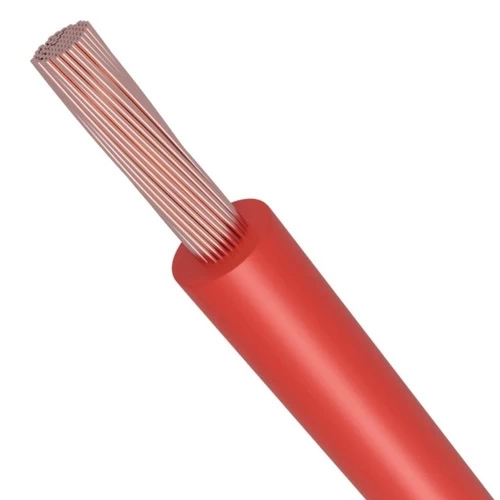

12 AWG Stranded Copper Wire, 600 V, PVC Insulated (+105°C) Red | Asharqiyah Cables
(737 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded copper electrical american wire (AWM), 12 AWG conductor size, It is used in air conditioners, automatic washing machines, refrigeration equipment, control cabinets and other construction applications, manufactured by Asharqiyah Cables.
Product description
Stranded copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Stranded Copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 12 AWG
- No. of Wires : 19
- Classification Standards : Class C of ASTM
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 4.70 mm
- Approx Weight : 52 kg/km
- Insulation Color : Red
- Standard Length : 2500 feet
- Standards : UL STYLE 1028, UL 758, UL E505934
