12 AWG Stranded Copper Electric Wire, 600 Volta, PVC Insulation (+105°C) Brown | Asharqiyah Cables
(800 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

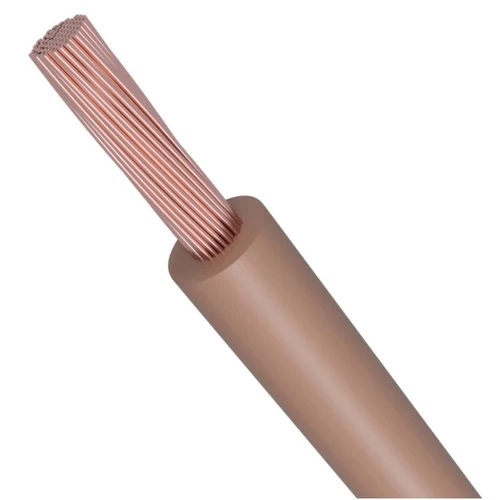

Stranded copper electrical american wire (AWM), 12 AWG conductor size, Length 2500 feet, manufactured by Asharqiyah Cables, suitable for indoor and outdoor uses, Available in a variety of sizes and colors, rated for 600 Vac or 750 Vdc.
Product description
Stranded copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Stranded Copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 12 AWG
- No. of Wires : 19
- Classification Standards : Class C of ASTM
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 4.70 mm
- Approx Weight : 52 kg/km
- Insulation Color : Brown
- Standard Length : 2500 feet
- Standards : UL STYLE 1028, UL 758, UL E505934
Additional Information▼
What is the diameter of 12 AWG wire in mm? (Converting AWG size to mm)
When asking "What is the diameter of 12 AWG wire in mm?", it usually refers to one of two things: the diameter of the copper conductor in millimeters or the cross-sectional area of the conductor in mm². The AWG system is an American measurement system, so the conversion is approximate.
- 12 AWG ≈ 3.31 mm² (approximately the cross-sectional area of copper).
- Copper conductor diameter (approximately) ≈ 2.05 mm.
- Important: The outer diameter after insulation varies depending on the thickness and type of insulation; in this product, the approximate total diameter is 4.70 mm with an insulation thickness of 1.14 mm (PVC +105°C).
Application of conversion on the displayed product (Eastern Cables – AWM 12 AWG)
This wire is of type AWM (Appliance Wiring Material) from Eastern Cables with a stranded copper conductor (number of strands 19) and insulation of PVC +105°C, suitable for internal connections of devices, control panels, and related construction applications.
Product specifications summary:
- Size: 12 AWG (≈ 3.31 mm²).
- Rated voltage: 600 volts (AC) / 750 volts (DC).
- Standard length: 2500 feet.
- Insulation color: Brown.
- Standards: UL STYLE 1028, UL 758.
How to choose the correct "mm" when purchasing?
- If you are comparing with mm² catalogs: Use the value 3.31 mm² as equivalent to 12 AWG for quick comparison.
- If the wire needs to be inserted into pipes/conduits: Rely on the total diameter of 4.70 mm as it represents the actual size after insulation.
- If the use is for devices and control panels: This AWM wire is designed for this type of application with insulation rated for +105°C to withstand heat.
