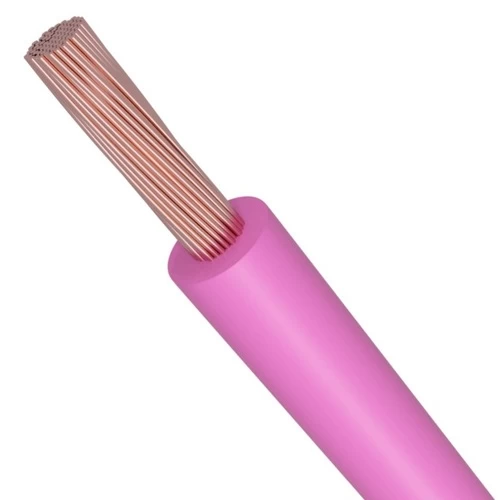

12 AWG Stranded Copper American Electrical Wire, PVC Insulation (105°C), Pink, 600 Volts, Length 2500 feet | Asharqiyah Cables
(565 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
12 AWG stranded copper wire, 600 volts, 2500 feet in length, insulated with PVC providing high resistance against moisture and oils, ideal for use in high-load electrical systems. Pink color by Asharqiyah Cables.
Product description
Stranded copper electrical American wire (AWM), manufactured by Asharqiyah Cables, complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Copper (Class C of ASTM)
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 12 AWG
- No. of Wires: 19
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 4.10 mm
- Approx Weight: 47 kg/km
- Insulation Color: Pink
- Standard Length: 2500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934
Additional Information▼
How many mm is 12 AWG wire? (AWG to mm conversion)
If you are looking for how many mm is 12 AWG wire, the most accurate conversion can be done in two ways depending on your needs: the conductor diameter in millimeters or the cross-sectional area in square millimeters (mm²). The size of 12 AWG is approximately 3.31 mm² for the cross-sectional area of the conductor. The approximate diameter of the conductor (without insulation) is about 2.05 mm.
Important Note: The outer diameter after insulation varies depending on the thickness of the insulation. In this product from Eastern Cables (PVC insulation 105°C), the total approximate diameter mentioned in the specifications is 4.10 mm.
Summary of 12 AWG Wire Specifications (Eastern Cables)
- Wire Type: AWM (Appliance Wiring Material)
- Conductor Material: Stranded Copper
- Voltage: 600 Volts
- Insulation Type: PVC 105°C
- Insulation Color: Pink
- Length: 2500 feet
How to choose the correct conversion when ordering 12 AWG wire?
When inquiring about how many mm, specify what you need:
- For installations and compatibility with tables/schematics: Use the value of the area (≈ 3.31 mm²).
- For conduit paths, glands, and connectors: Focus on the outer diameter—and in this product, the total approximate diameter is 4.10 mm according to its data.
This helps you avoid a common mistake: relying solely on the conductor diameter when calculating conduit capacity or selecting glands, while practically, the diameter after insulation is more important.
