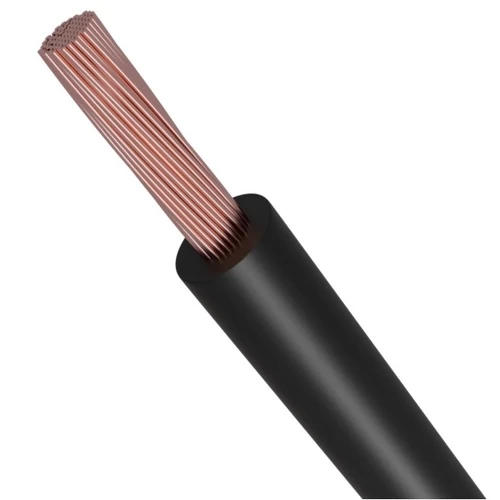

12 AWG 1C Stranded Copper Electrical Wire, 1000 Vac, PVC Insulation (+105°C) black, Length 2500ft | Asharqiyah Cables
(1228 Product Views)
12 AWG stranded copper electrical American wire, 1000 Vac, Length 2500ft. Insulated with PVC, providing strong protection against heat and oils. Ideal for industrial applications such as control equipment and industrial electrical devices. black color by Asharqiyah Cables.
Product description
Stranded copper electrical American wire (AWM), rated for 1000 Vac, manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 12 AWG
- No. of Wires: 19
- Classification Standards: Class C of ASTM
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 4.10 mm
- Approx Weight: 47 kg/km
- Insulation Color: Black
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
Additional Information▼
How many millimeters is 12 AWG? (Conversion from AWG to mm)
The size 12 AWG is an American standard for wire thickness (American Wire Gauge). Users often look for the equivalent in millimeters, so we clarify the two key points to understand the size correctly before purchasing:
- Wire diameter with insulation: This product has an approximate total diameter of 4.10 mm (including PVC insulation).
- Insulation thickness: The nominal thickness of the insulation layer is 0.76 mm, which helps estimate the required space inside conduits/trays.
Important Note: Converting 12 AWG to “how many millimeters” may refer to conductor diameter, conductor cross-sectional area, or total diameter with insulation. On this page, we present the confirmed values from the product data above (total diameter and insulation thickness) to avoid any confusion during implementation on site.
Quick Summary of AWM 12 AWG Specifications (Eastern Cables)
- Company: Eastern Cables
- Wire Type: AWM (Appliance Wiring Material)
- Conductor: Stranded Copper
- Insulation: PVC (+105°C)
- Rated Voltage: 1000 Volts
- Size: 12 AWG
- Color: Black
- Length per Roll: 2500 Feet
How to Choose the Right Size When Ordering “How many millimeters is 12 AWG”?
- Define your purpose for “millimeters”: If the goal is to pass the wire through a pipe/channel, focus on the total diameter of 4.10 mm. If the goal is to match project/specification requirements, rely on the 12 AWG size itself as the standard measure.
- Check the operating environment: PVC insulation rated at +105°C is suitable for indoor applications for devices and control panels where temperatures may rise.
- Length per roll: The roll of 2500 feet helps reduce waste in medium to large projects and facilitates quantity planning.
Brief Usage Guidelines (for the Saudi Market)
- Use the wire within its designed range: Internal connections for devices and control cabinets and similar applications.
- Before installation, ensure that the required rated voltage for your circuits matches 1000 Volts as per design needs.
- To ensure correct selection of size and quantity, prepare project data (paths/lengths/method of installation) before ordering.
