10 sq mm NYA Wire 450/750 Volts, Stranded Copper, PVC 90°C Insulation, Yellow/Green | Asharqiyah Cables
(915 Product Views)

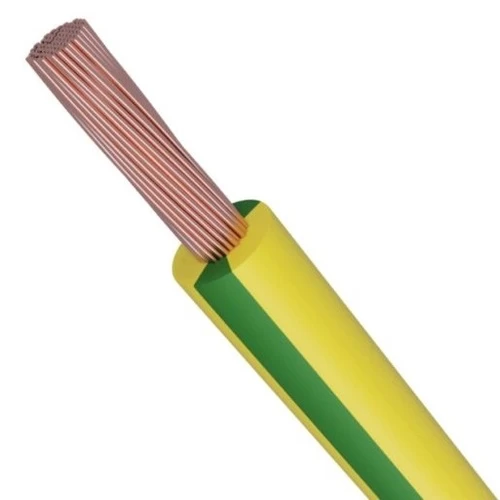

Stranded Copper Electrical Wire (CU/PVC), 10 mm2 Cross Section, 450/750 Volts, specifically designed for fixed installations and building wiring in conduits or ducts, color is yellow/green, manufactured by Alsharqiyah Cables Company.
Product description
Electrical Wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced in accordance with international quality and safety standards, PVC insulated (90°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: (PVC 90°C) Heat Resistant
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 6.1 mm
- Weight: 115 kg/km
- Maximum DC Resistance at 20°C: ≤1.83 ohm/km
- Standard Length: 100 yards coil
- Insulation Color: Yellow/Green
- Standards: IEC 60227-3, BS EN 50525-2-31
