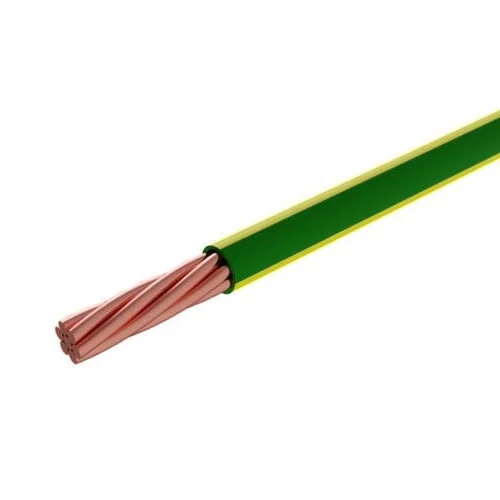

10 mm Stranded Copper Earthing Electric Wire, 450/750V, PVC Insulation, Green/Yellow | Riyadh Cables
(1537 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
10 mm stranded copper earthing electric wire, 450/750 volts, PVC insulation, offers high resistance to corrosion and water, ensuring the safety and security of the electrical system in harsh environments. Green/Yellow color. Produced by Riyadh Cables.
Product description
Stranded copper electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment. Available in various shapes, colors, and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor: Copper
- Conductor Shape: Stranded
- Wire Type: (H07V-R)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm²
- Number of Wires in Conductor: 7
- Conductor Diameter: 4.05 mm
- Nominal Insulation Thickness: 1.0 mm
- Approx Overall Diameter: 6.7 mm
- Weight: 116 kg/km
- Maximum DC Resistance at 20°C: 1.83 ohm/km
- Length: 100m coil (±5%)
- Color: Yellow/Green
- Standards: SSA 1320, IEC 60227 & BS 6004
