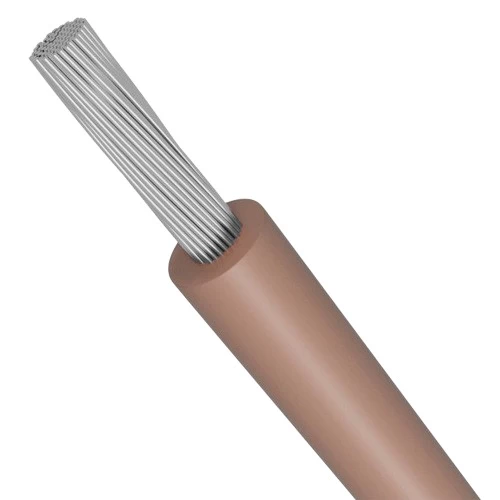

1/0 AWG Stranded Tinned Copper Electrical Wire, PVC Insulation (105°C), Brown, 600V, Length 500ft Length | Alsharqiyah Cables

1/0 AWG Stranded Tinned Copper Electrical Wire, PVC Insulation (105°C), Brown, 600V, Length 500ft Length | Alsharqiyah Cables

(562 Product Views)

YouMats

Stranded copper AWM electric wire 1/0 AWG, 600 voltage rating, used in internal wiring in refrigerators, washing machines, and air conditioners, insulation color is brown, length 500ft, PVC insulated, produced by Alsharqiyah Cables Company.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Electrical american wire (AWM), manufactured by Alsharqiyah Cables Company. complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.

  • Wire Type: American Wires AWM (Appliance Wiring Material)
  • Conductor: Stranded Tinned Copper (Class C of ASTM)
  • Insulation Material: (PVC 105°C) Heat Resistance
  • Voltage: 600 volts
  • Conductor Size (Cross-sectional area): 1/0 AWG
  • No. of Wires: 19
  • Nominal Insulation Thickness: 2.03 mm
  • Approx Overall Diameter: 14.10 mm
  • Approx Weight: 615 kg/km
  • Insulation Color: Brown
  • Standard Length: 500 feet on a plastic spool or wooden drum
  • Standards: UL-1015, UL 758, UL E505934\
