1 AWG Stranded Tinned Copper Electric Wire, PVC Insulation (105°C), Green, 600 Voltage Rating, Length 500 Feet | Alsharqiyah Cables
(601 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

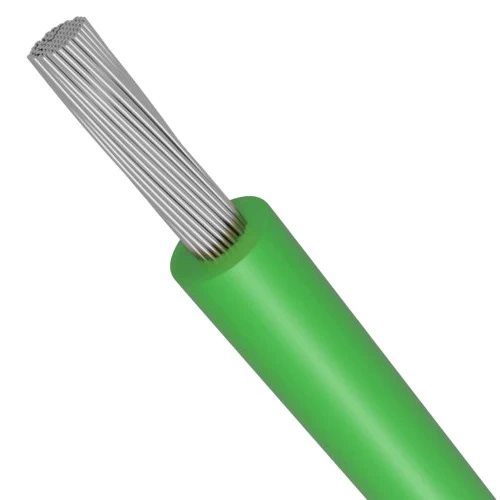

Stranded copper electrical AWM american wire, 1 AWG Cross Section, 600 Volts, color is green, complying with UL 1015 standards, insulated with polyvinyl chloride, manufactured by Alsharqiyah Cables Company.
Product description
Electrical american wire (AWM), manufactured by Alsharqiyah Cables Company. complying with UL 1015 standards. Insulated with polyvinyl chloride (PVC 105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Tinned Copper (Class C of ASTM)
- Insulation Material: (PVC 105°C) Heat Resistance
- Voltage: 600 volts
- Conductor Size (Cross-sectional area): 1 AWG
- No. of Wires: 19
- Nominal Insulation Thickness: 2.03 mm
- Approx Overall Diameter: 12.80 mm
- Approx Weight: 500 kg/km
- Insulation Color: Green
- Standard Length: 500 feet on a plastic spool or wooden drum
- Standards: UL-1015, UL 758, UL E505934\
