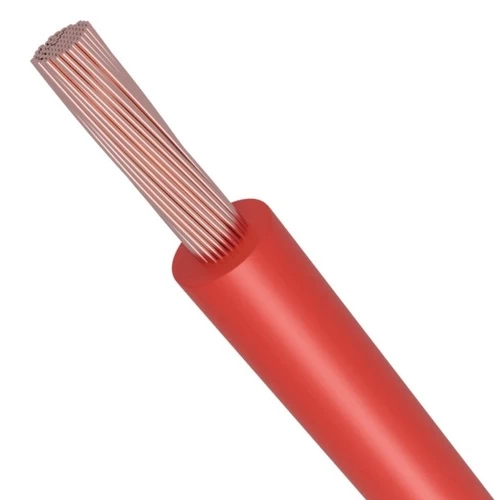

1 AWG 1C Stranded Copper Electric Wire, 1000 Vac, PVC Insulated (+105°C) Red, Length 500ft | Asharqiyah Cables
(539 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
1 AWG stranded copper American electric wire, 1000 Vac, Length 500ft. Insulated with PVC, offering high protection against environmental factors. Suitable for heavy-duty industrial applications such as control and power equipment. Red color by Asharqiyah Cables.
Product description
Stranded copper electrical American wire (AWM), rated for 1000 Vac, manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Stranded Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 1 AWG
- No. of Wires: 19
- Classification Standards: Class B of ASTM
- Nominal Insulation Thickness: 2.03 mm
- Approx Overall Diameter: 12.80 mm
- Approx Weight: 500 kg/km
- Insulation Color: Red
- Standard Length: 500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
