Solid Wire 1mm 300/500V, Copper Conductor Heat Resistant PVC Insulated | Alfanar
(770 Product Views)

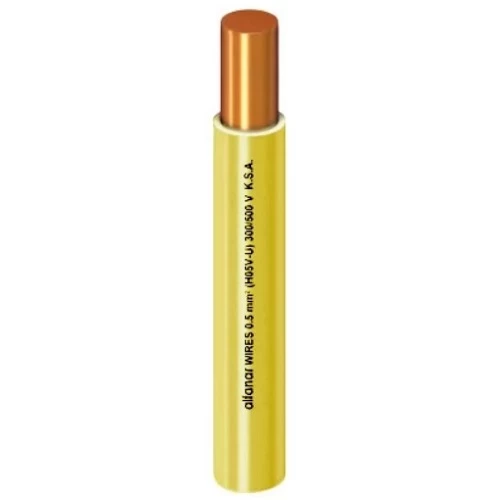

Solid copper electrical heat resistant cable (CU/PVC), 1 mm2 cross-sectional area, 300/500 volts, Used in control panels, machines and devices with high operating temperature, manufactured by Alfanar Company.
Product description
Solid copper electrical heat resistant cable (CU/PVC), Produced by Al Fanar Company in accordance with the latest BS or IEC standards. Insulated with polyvinyl chloride (PVC 90 ºC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines and instruments with higher operating temperature, and in lighting networks, power systems. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Solid
- Insulation Material: Polyvinyl Chloride (PVC) 90 ºC
- Voltage: 300/500 volts
- Conductor Size (Cross-Sectional Area): 1 mm2
- Conductor Diameter: 1.13 mm
- Max DC Conductor Resistance at 20°C: 18.1 ohm/km
- Nominal Insulation Thickness: 0.6 mm
- Approx Overall Diameter: 2.3 mm
- Weight: 13 kg/km
- Length: 100 yards on Coil (Other lengths available on request)
- Color: Yellow
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
