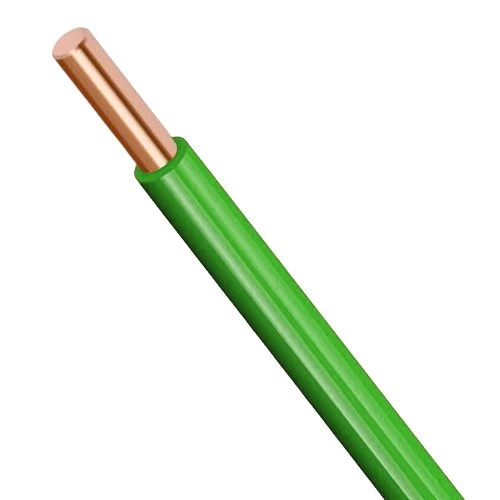

Solid Copper Single Core Wire 18 AWG, 1000 Volts, PVC Insulation (PVC+105°C), Green | Alsharqiyah Cables
(538 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Solid copper electrical AWM american wire, 18 AWG cross section, 1000 Volts, available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs, color is green, complying with (UL STYLE 11563) standards, manufactured by Alsharqiyah Cables Company.
Product description
Electrical american wire (AWM), manufactured by Alsharqiyah Cables Company, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Solid Copper
- Insulation Material: (PVC +105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 18 AWG
- Wire Diameter: 1.02 mm
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 2.65 mm
- Approx Weight: 16 kg/km
- Insulation Color: Green
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
