Solid Copper Single Core Building Wire, 4mm, 450/750V Voltage Rating, PVC 85°C Insulation, Red Color, Length 100 meter | Saudi Cable Company

Product description

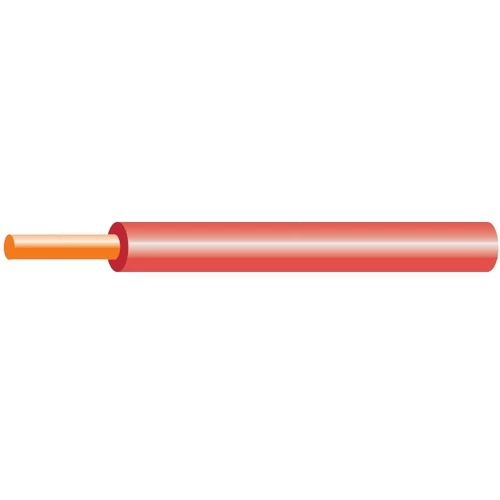

Solid copper electrical single core wire (CU/PVC), rated 450/750V, manufactured by Saudi Cable Company (SCC). Insulated with polyvinyl chloride (PVC 85°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

• Conductor Material: Solid Copper Conforming to IEC:228
• Insulation Material: PVC Type 5 to BS:6746 Rated 85°C
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 4 mm
• Number of Wires in Conductor: 1
• Nominal Insulation Thickness: 0.8 mm
• Approx Overall Diameter: 4.1 mm
• Weight: 47 kg/km
• Length: 100 meter/Box
• Color: Red
• Specification: SASO:55
• Catalogue Number: AJA1-06*
