BAHRA 10 sq mm Wire 450/750 Volts, Solid Copper Conductor PVC 70°C Insulation, White, 300 Feet Length
(958 Product Views)

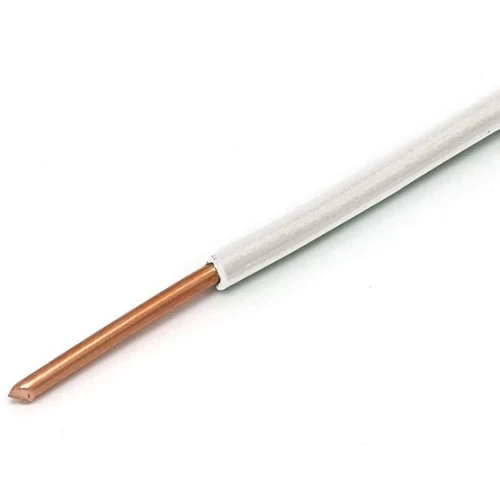

Solid copper electrical wire (CU/PVC), 10 mm2 Cross Section, 450/750 Volts, specifically designed for fixed installations and building wiring in conduits or ducts, color is white, manufactured by Bahra Company.
Product description
Electrical wire (CU/PVC), manufactured by Bahra Cables Company, according to British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Specifically designed for fixed installations and building wiring in conduits or ducts, this cable finds extensive use in lighting fixtures, switches, control devices, control panels, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Solid Copper
- Insulation Material: PVC 70°C (type TI-1 to BS EN 50363-3)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm
- Number of Wires x Nominal Wire Diameter: 1 X 3.57 mm
- Maximum DC Resistance at 20°C: 1.83 ohm/km
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 5.57 mm
- Current Carrying Capacity (PVC 70°C): 57 Ampere
- Standard Length: 100 Yards/Coil
- Insulation Color: White
- Standards: 60227 IEC 01, BS EN 50525-2-31 and SASO 1320
