6mm Solid Copper Building Wire 450/750V, PVC 70°C Insulated, Green/Yellow Color, 100 Yards | Red Sea Cables

6mm Solid Copper Building Wire 450/750V, PVC 70°C Insulated, Green/Yellow Color, 100 Yards | Red Sea Cables

(376 Product Views)

YouMats

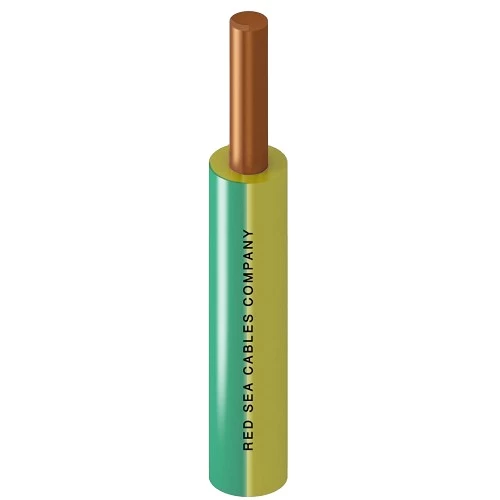

Solid copper Building wire (CU/PVC), 6 mm2 cross section, 450/750V, From Red Sea Cables, it can be used in outdoor installations, such as connecting power to lighting poles or surveillance cameras, thanks to its resistance to different weather conditions, green/yellow color.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Solid copper electrical wire (CU/PVC), manufactured by Red Sea Cables Company according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 70°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

  • Wire Type: H07V2-U
  • Conductor: Solid Copper
  • Insulation Material: PVC 70°C
  • Voltage: 450/750V
  • Conductor Size (Cross-Sectional Area): 6 mm2
  • Nominal Insulation Thickness: 0.8 mm
  • Approx Overall Diameter: 4.6 mm
  • Maximum DC Resistance at 20°C: 3.08 ohm/km
  • Current Carrying Capacity (PVC 70°C): 41 Ampere
  • Standard Length: 100 Yards (91.4 meter) / Plastic Reels
  • Insulation Color: Green/Yellow
  • Standards: SASO 1320, IEC 60227, BS 6004
