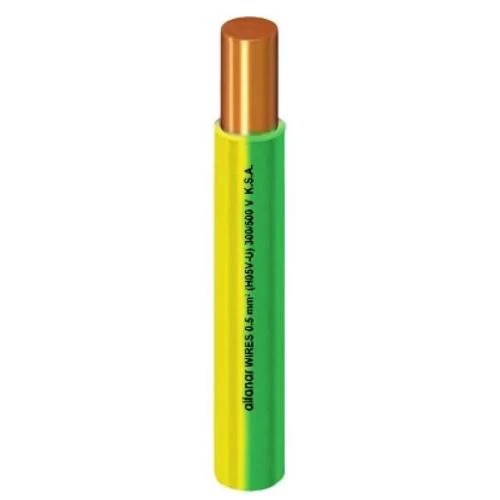

2.5mm 450/750V Single Electric Wire, 0.8mm Diameter Solid Copper Conductor, PVC Insulation | Alfanar
(1101 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
2.5 mm2 450/750V Single Electric Wire, 0.8 mm diameter solid copper conductor, PVC insulation, phase core colors (yellow, green), insulated with polyvinyl chloride (PVC) they are distinguished by their economical cost, reliable performance, as it is forms excellent insulation around the conductor to prevent leakage of electric current, manufactured by Alfanar.
Product description
Solid copper electrical wire (CU/PVC), manufactured by Alfanar, Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the cable and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Conductor Type: Copper
- Conductor Shape: Solid
- Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Conductor Diameter: 1.78 mm
- Max DC Conductor Resistance at 20°C: 7.41 ohm/km
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 3.4 mm
- Weight: 32 kg/km
- Length: 100 yards on Coil (Other lengths available on request)
- Colors: (Yellow, Green)
- Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
