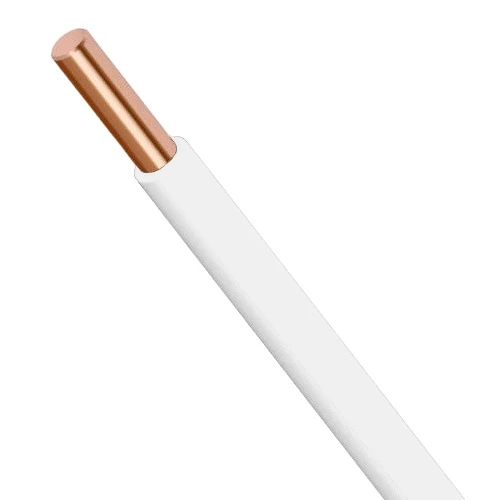

Solid electric wire 1 mm, 300/500 Volts, copper conductor PVC 90°C Insulated, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture, insulation color is white, produced by Alsharqiyah Cables.
Product description
Electrical wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (90°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in a conduits, ducts or trunks or similar closed systems. It can be used in/on lighting fittings, switch and control devices, control panels, inside appliances and similar applications. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H05V2-U
- Conductor: Solid Copper (Class 1)
- Insulation Material: PVC (90°C)
- Voltage: 300/500 volts
- Conductor Size (Cross-Sectional Area): 1mm
- Nominal Insulation Thickness: 0.6 mm
- Approx Overall Diameter: 2.50 mm
- Weight: 17 kg/km
- Maximum DC Resistance at 20°C: ≤18.10 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: White
- Standards: IEC 60227-3, BS EN 50525-2-31
