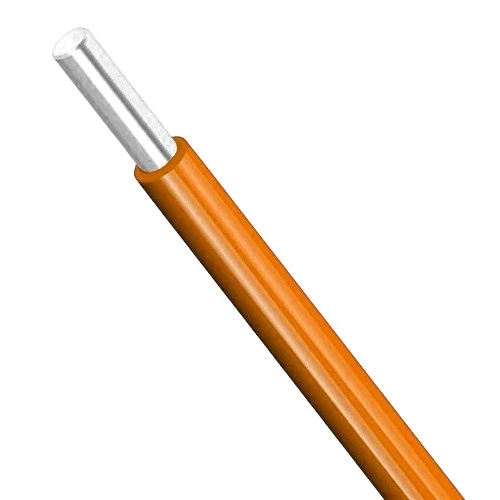

16 AWG Solid Tinned Copper American Wire, 600 Voltage Rating, PVC Insulated (+105°C) Orange | Asharqiyah Cables
(673 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Solid tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables, rated for 600 Vac or 750 Vdc, Specially designed for use in the internal wiring of household and industrial electrical appliances, 16 AWG conductor size, 2500 feet Length.
Product description
Solid tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type : American Wires AWM (Appliance Wiring Material)
- Conductor : Solid Tinned Copper
- Insulation Material : (PVC +105°C) Heat Resistance
- Voltage : Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area) : 16 AWG
- Wire Diameter : 1.30 mm
- Nominal Insulation Thickness : 1.14 mm
- Approx Overall Diameter : 3.70 mm
- Approx Weight : 30 kg/km
- Insulation Color : Orange
- Standard Length : 2500 feet on a plastic spool or wooden drum
- Standards : UL STYLE 1028, UL 758, UL E505934
