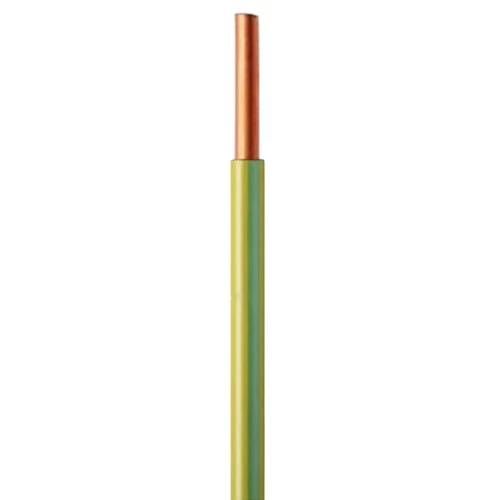

1.5mm Solid Copper Electric Wire 450/750V, Green/Yellow | Jeddah Cables
(720 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
1.5mm Solid Copper Electric Wire 450/750V, designed to ensure a safe path for electric current in the event of a short circuit by grounding excess electrical charges. This helps protect people and equipment from electric shocks due to electrical interference. Green/Yellow color, producted by Jeddah Cables.
Product description
Solid copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Used to provide a safe path for electric current in the event of a short circuit, by discharging any excess electrical charges to the ground. This protects people and equipment from electric shocks caused by electrical interference. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.
- Conductor: Solid Copper
- Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 1.5 mm²
- Nominal Insulation Thickness: 0.7 mm
- Approx Overall Diameter: 2.8 mm
- Weight: 20 kg/km
- Max DC Conductor Resistance at 20°C: 12.1 ohm/km
- Current Rating Laid in Conduits: 21 Ampere
- Current Rating Laid in Free Air: 28 Ampere
- Color: Green/Yellow
- Standard: IEC 60227
